NH Dabung 85 HP Tractor Specifications, Price & Reviews – AGTL

Advertisement

NH Dabung 85 HP Tractor was launched by AL Ghazi Tractors Limited in April 2016. AGTL manufactured this new model by modification of New Holland NH 640 SP tractor. this is 85 horse power tractors has been made with strong rear portion. AGTL share in the segment of 85HP was negligible for covering and snatching the share Dabung tractor was launched.

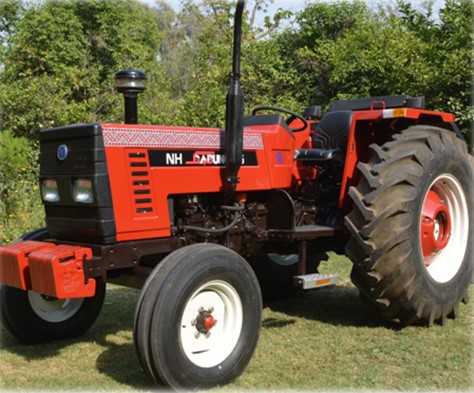

NH Dabung 85 HP Tractor

NH Dabung 85 HP Tractor Price

Booking rate / Ex – Factrory price of New Holland Dabung tractors is given below. For Booking of your tractor contact us or comment below your query.

Price in Pakistani Rupees

Price in US Dollars

Rs. 1,144,500/-

$9842

NH Dabung 85 HP Tractor Specifications

ENGINE POWER

At flywheel 85 HP

ENGINE

New Holland 8045.05

4-Stroke, direct injection diesel engine

Number of cylinder: 4

Bore and stroke: 104 x 115 mm

Piston Displacement: 3,908 cc

Flyweight type dynamic balancer.

Compression ratio: 17:1

Max. Power at 2,600 rpm: 85 HP

Max. Torque at 1,600 rpm: 29.7 kgm

Dry-type cylinder liners.

Cooling system: water

Five-row, brass tube and copper fin radiator

Forced-feed lubrication system.

Two power outlets for hydraulic pump on timing

cover.

Distributor type fuel injection pump with

mechanical Speed Governor.

Exhaust Muffler: Vertical

Five bearing crankshaft

Oil Cooler

FILTERS

Air: Oil-bath with pre-cleaner

Fuel: 2 replaceable cartridges;

Oil: Easy-to-change, continuous-flow cartridge

CLUTCH

Dual plate, dry-type with separate controls (pedal

for transmission and hand lever for PTO),

Diameter of plates: 11 inch

Cera Metallic Clutch Plate.

TYRES

Front: 7.50-16 Rear: 18.4/15-30

DRIVER’S SEAT

Fully upholstered, with parallelogram suspension,

adjustable, foot step for ease.

BODY

Front lifting hood. Three side access to Engine for

ease of maintenance.

LIGHTING SYSTEM

3-position headlights; (parking, low & high beam).

Blue high beam warning light on instrument panel.

Adjustable head light mounted in the front grill,

indicators, parking & hazard lights.

ELECTRICAL SYSTEM

12 Volt starting system, 4hp (3KW) starter motor.

400 Watts alternator, 108 ah battery. 7 pin

connector for trolley. Cold Starting aid, Provision

for mobile charger and MP3.

INSTRUMENT PANEL

Separate temperature, fuel gauge & hour meter.

CAPACITY

Fuel tank: 65 l

Engine oil: 11.5 l

Hydraulic Transmission: 29 l

Rear Axle: 4 l at each side

Air Cleaner: 1 l

Power Steering: 2 l

OPERATING WEIGHT

2865kg

TRANSISSION

Gearbox with constant-mesh gears:

8 forward and 2 reverse speeds.

Synchromesh on 3rd, 4th, 7th and 8th speeds

Double control lever

Differential lock with pedal actuated and automatic

disconnection.

Spur gear final drives.

Gear Box mounted starter safety switch.

FRONT AXLE

Inverted U section, telescopic type, front weight 160kg.

TRACKS

Front (8 positions):

1.320 – 1,420 – 1,520 – 1,620

1,720 – 1,820 – 1,920 – 2,020 mm.

Rear (8 positions):

1,320 – 1,420 – 1,520 – 1,620

1,720 – 1,820 – 1,920 – 2,020 mm.

STEERING

Hydrostatic power steering.

Minimum turning radius:

-with brakes: 3,600 mm

-without brakes: 4,400 mm

POWER TAKE OFF

6 spline shaft – 35 mm dia / 1 – 3 8”

Fully independent: 540 rpm at 2,160 engine rpm

High-speed DTO (*) 35 mm dia / 1 – 3 8” same speed as engine.

(*) for application of high speed implements

HYDRAULIC LIFT

With draft and position control,

Draft control through top link.

Gear type pump driven from engine crankshaft.

Pump capacity (at 2,400 engine rpm). 26.7 l/min Relief valve opening pressure: 190kg/cm2

3-point linkage Cat I – II

Sway chains.

Lift lever lock bracket.

Max. Lifting capacity: 2,150 kg

BRAKES

Oil immersed disc brakes.

Parking: manual lever on right side of operator.

DIMENSIONS

(With 7.50-16 and 18.4/15-30 tyres) a) Wheelbase: 2,070 mm b) Overall length: 3,330 mm c) Height to top of hood: 1,402 mm d) Height to steering wheel: 1,675 mm

e) Front track (8 positions):

from 1,320 to 2,020 mm

f) Rear track (8 positions):

from 1,320 to 2,020 mm

g) Ground clearance under front axle:

500 mm

ADDITIONAL

Rear seat, Front and Rear Weights, Towing Hook.

OPTIONAL

Canopy, Swinging Draw bar, DTO pump

applications and Creeper gear.

NH Dabung 85 HP Tractor Reviews

Competitor of this tractor is Millat’s MF 385 tractor. Massey 385 tractor is most selling model in Pakistan. Where there Dabung is sold customers are not 100% satisfied with its performance. Dabung is powerful and fuel economic tractor specially for farming purposes like tillage and use of implements. But when we talk about tractor trolley purpose its not so good yet.

More than 1000 units have been sold by company so far. Due to its SG iron (Steel Mix) axle tubes it is being used for haulage purpose in sugarcane areas like District Rahim Yar khan.

Technical Brochure of Nh Dabung 85 Tractor:

NH Dabung tractor technical leaflet

Check Also: MF 385 Tractor Price & Specs

Dabung Tractor Demo on Loaded Sugarcane Trolley

Check Also: All Tractor Prices 2018
