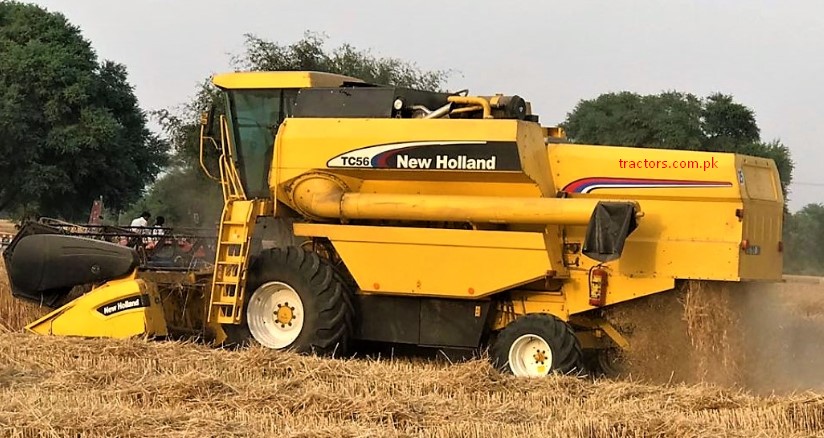

New Holland TC 56 combine harvester was launched in 1991. It is manufactured by New Holland Agriculture and now this model has been discontinued. The latest model of TC56 harvester was released in 2010. TC 56 is excellent performance giving machine and one of the best in its time. It is more comfortable for the operator and gives higher efficiency.
Old models of TC 56 combine harvester are available for sale in the market. in Pakistan, its models ranging from 1995 to 2004 year are available. TC 56 has mechanical and hydraulic versions.
New Holland TC 56 Combine Harvester Price in Pakistan
Model |
Price in PKR |
| 1995-1998 | Rs. 35 to 40 Lakh |
| 1999-2004 | Rs. 40 to 60 Lakh |
Machines price depends upon the model and its condition. These are the price ranges of used models which are imported in Pakistan.
Check New Holland TC 5.30 Price
New Holland TC 56 Combine Harvester Specifications
| Engine | |
| Engine manufacturer | New Holland |
| Engine type (model / version) | 6.75T |
| Engine capacity | 7474 cm3 (7.5 l.) |
| Cylinders, | 6 Nos. |
| Turbocharging | Available |
| Power (kW/HP) | 114 kW / 155 KM |
| Engine fuel tank | 300 liters |
| Header | |
| Header width (working) | 450 cm |
| Alternative widths | 356 – 520 cm |
| Automatic header height mode | N/A |
| Header tilt systems | N/A |
| Header tilt adjustment | N/A |
| Reel diameter | 106 cm |
| Reel speed adjustment | Electric Engine |
| Header reverser / Reel reverse feature | Hydraulics |
| Threshing System | |
| The diameter of cylinder threshing mechanism | 60 cm |
| Width of cylinder threshing mechanism | 131 cm |
| Straw Walkers | |
| Straw walkers, qty | 5 straw walkers |
| Straw walkers area | 5.1 m2 |
| Straw walkers length | 375 cm |
| Sieves | |
| Upper sieve area | n.d. |
| Lower sieve area | 1.72 m2 |
| Total screening area | 4.2 m2 |
| screening area covered by the fan | |
| Lower sieve type | Adjustable |
| Road Speed | |
| Max. speed | 26 km/h |
| Grain loss indicator | N/A |
| Transmission | |
| Transmission Type | Hydraulic transmission |
| Forward and Reverse Gears | 4+4 |
| Brakes | |
| Brakes | Hydraulics & Disc Brakes |
| Dimensions | |
| Length (with header) | 9.3 m |
| Width (with header) | 4.91 m |
| Width (without header) | 3.38 m |
| Height (with cab) | 3.81 m |
| Height (without cab) | 3.71 m |
| Total weight (with cab) | 9750 kg |
| Total weight (with header) | 8500 kg |
| Front tyres (drive wheels) | 23-1R30 |
| Rear tyres (turning wheels) | 13,0/65-18 |
| Alternative rear tyres | 10,50-18 |
| AC | |
| Air conditioning | Available |
| Heating | Optional |
Spare parts of TC 56 combine harvester are available in Pakistan. There is no problem regarding the availability of its spares. Maintenance workshops are already in work. Service providers are earning from this machine by running it commercially.
